The Characterization Advantage of Electron Backscatter Diffraction (EBSD) Microscopy


Contributors

RJ Lee Group


Written By: Christopher M. Hefferan, Ph.D

Electron backscatter diffraction (EBSD) microscopy is a characterization technique used with scanning electron microscopes (SEMs) for the determination of crystallographic information present in both metal and mineral samples.

Much like energy dispersive X-ray spectroscopy (EDS), which provides the elemental composition through the interaction of an electron beam and individual atoms, EBSD uses the interaction of the electron beam with a localized, periodic arrangement of atoms to generate diffraction (Kikuchi) patterns that can be captured with a unique camera-beam-detector geometry.

The Characterization Advantage of Electron Backscatter Diffraction (EBSD) Microscopy

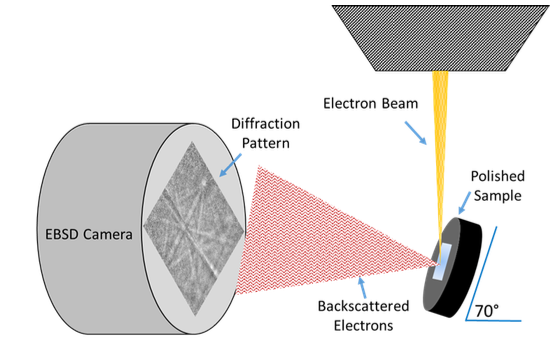

Fig 1SEM collection geometry for EBSD analysis. A crystalline sample, oriented 70 ̊ with respect to normal beam incidence, produces a diffraction signal from backscattered electrons that can be collected on a phosphorous screen camera.

The technique provides the ability to determine the crystalline phase and orientation information from the analyzed area in a bulk sample and supplements EDS analysis when more detailed structural information is necessary.

EBSD serves as either a complement or alternative to other crystallographic analysis techniques such as transmission electron (TEM) microscopy and x-ray diffraction (XRD), with the added benefit of high-resolution, spatially resolved, phase/orientation mapping.

Unlike TEM analysis, where diffracted electrons pass through the analyzed region, EBSD imaging uses reflected electrons that have diffracted from atoms on the surface of the specimen. By operating as a surface analysis technique, EBSD is well suited for evaluating large polished surface areas, which is often infeasible with TEM, where extremely thin (nanometer) samples and consequently small areas are necessary to limit attenuation of the diffracted signal.

A frequent alternative to TEM is XRD, which uses the interaction of a (poly)crystalline sample with X-rays to produce Bragg diffraction that can be used to quantify the relative abundance of crystalline material phases that may be present in each specimen. Traditional XRD is well suited for the evaluation of powder samples, where randomized orientations yield better X-ray signals and the spatial distribution of phases in the powder solution is typically of minimal interest. Solid materials/polished samples can also be analyzed by XRD to yield texture information, but the analysis is typically used for the identification of preferred orientations via the generation of pole figures and is challenged in producing spatially localized texture information.

The Characterization Advantage of Electron Backscatter Diffraction (EBSD) Microscopy

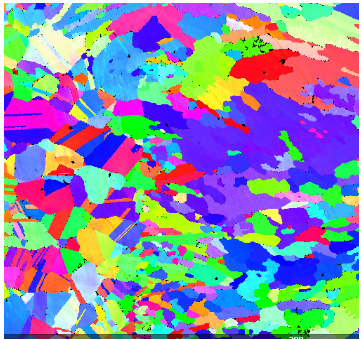

Fig 2EBSD microstructure map collected from a polished surface of a weld interface of a C-276 nickel alloy. The coloring scheme correlates with a component of grain orientation.

EBSD serves as a potential alternative to these two techniques, where the ability to scan and map large sample areas (mm ) is of interest. Grain size can be determined without the need for etching to reveal the location of grain boundaries. Crystallographic phases can be evaluated when EDS information produces insufficient information as in the case of the iron oxides wüstite (FeO), magnetite (Fe3O4), and hematite (Fe2O3). Here, EDS is capable of identifying the presence of iron and oxygen but is limited in determining the atomic arrangement of these atoms.

EBSD can also be used to evaluate the crystallographic texture of a microstructure in the context of both grain and grain boundary orientations. Texture plays an important role in the macroscopic behavior of materials including corrosion behavior, electro-magnetic properties, and mechanical strength.

The Characterization Advantage of Electron Backscatter Diffraction (EBSD) Microscopy

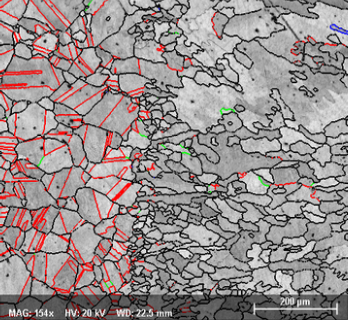

Fig 3Map illustrating grain boundaries from the microstructure collected in Figure 2. Black lines illustrate grain boundaries, where local misorientation is in excess of 15 ̊. Red, green, and blue lines highlight grain boundaries with special misorientation relationships related to the face-centered cubic (FCC) twin configuration. Random high-angle grain boundaries are shown in black.

The ability to map large areas of microstructure affords the production of texture metrics like pole figures, inverse pole figures, and orientation distributions. Grain boundary networks and grain boundary misorientation distributions can also be produced and assist in a greater understanding of the underlying microstructure and its relationship to material performance.

The Characterization Advantage of Electron Backscatter Diffraction (EBSD) Microscopy

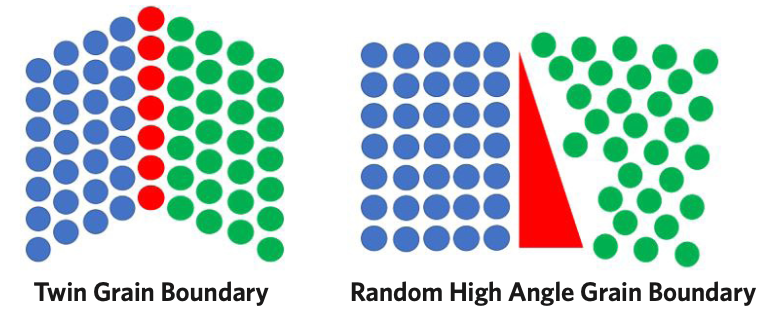

Fig 4Grain boundary illustration of the difference between an FCC twin configuration and a random high-angle grain boundary (HAGB). Atoms from two grains are colored in blue and green, while the interface between the grains is shown in red. While both grain boundaries can be described by a large misorientation angle, the twin grain boundary exhibits a high degree of symmetry that can result in unique material properties. Orientation imaging via EBSD allows for the quantitative characterization of grain boundaries.

This summary description is offered for educational purposes only and no warranty (express or implied) is given on the applicability of this information to any particular part, material, application, or product. This article is not intended to be a complete dissertation on this topic and the reader is encouraged to contact RJ Lee Group for consultation regarding individual applications, materials, or situations.

References

1 ASTM E2627-13(2019), Standard Practice for Determining Average Grain Size Using Electron Backscatter Diffraction (EBSD) in Fully Recrystallized Polycrystalline Materials, ASTM International, West Conshohocken, PA, 2019

2 Kim, Bae-Kyun, and Jerzy A. Szpunar. “Orientation imaging microscopy in research on high-temperature oxidation.” Electron Backscatter 3Diffraction in Materials Science. Springer, Boston, MA, 2009. 361-393.

3 Dwivedi, Deepak, Kateřina Lepková, and Thomas Becker. “Carbon steel corrosion: a review of key surface properties and characterization

methods.” RSC advances 7.8 (2017): 4580-4610.

4 Bernier, Nicolas, et al. “EBSD study of angular deviations from the Goss component in grain-oriented electrical steels.” Micron 54 (2013): 43-51.

5 Fizanne-Michel, C., et al. “Determination of hardness and elastic modulus inverse pole figures of a polycrystalline commercially pure titanium by coupling nanoindentation and EBSD techniques.” Materials Science and Engineering: A 613 (2014): 159-162.
